UHF Wearable RFID Reader
- China
Code: AH 5.3.3

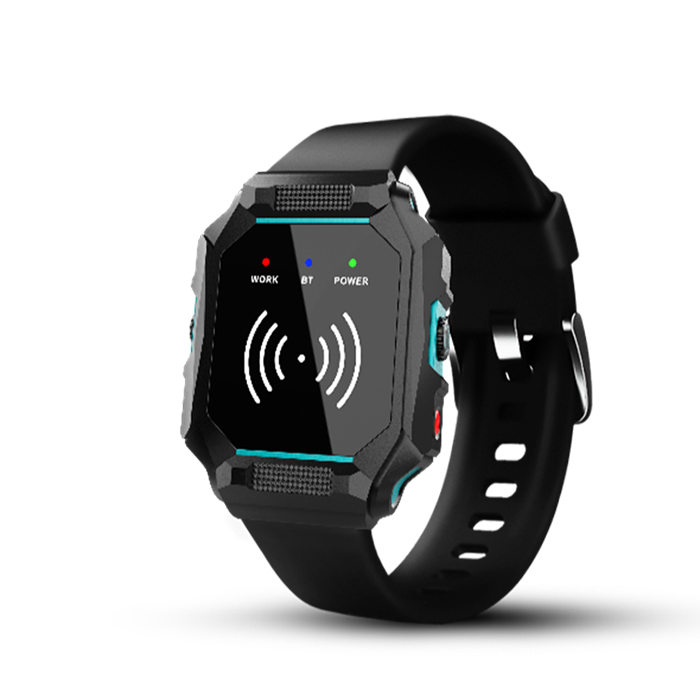

UHF Wearable RFID Reader
Wrist strap design for greater comfort
Contactless connection Bluetooth matching
Comes with APP client application software
Supports fast read and write, easy operation
Fast communication speed and strong anti-interference ability
Large capacity batteries last longer

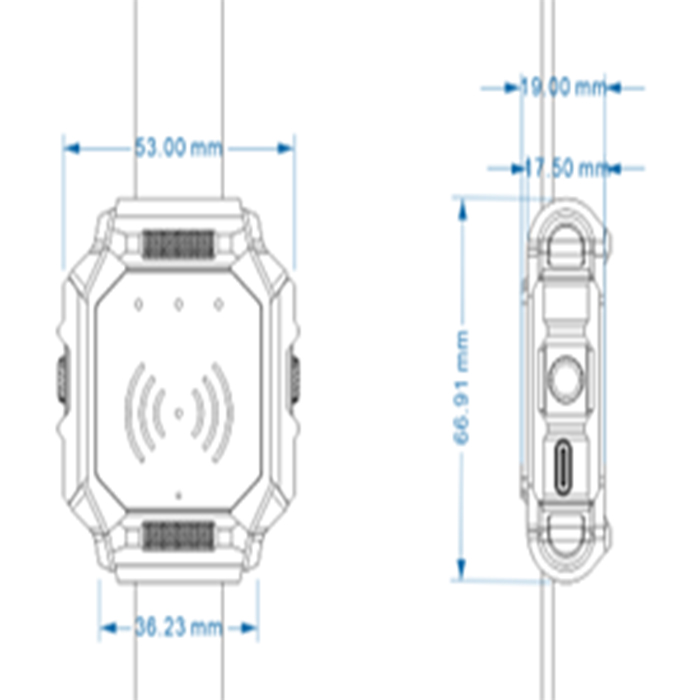

External Dimension: 53mm*67mm*19mm
Net Weight: 50g
Canning Material: ABS+PC
Antenna: 0.5dbi circularly polarized antenna
Color: black + Lake blue
Buzzer: There is a buzzer software configurable
Communication interface: Type-C\
Indicator light: Battery light, Bluetooth light, working light
Blue tooth: Bluetooth 4.2
Reader Range: 0.5-1m (It depends on the label type, transmitting power, and application environment)
Output power: Software adjustable step 1.0dB, +20dBm~+30dBm
Support work area: national standard CN920MHz-925MHz
American-Standard US902MHz-928MHz
TPID: EPC global UHF Class 1 Gen2/ISO 18000-6C
Storage temperature: -30 ºC~+70 ºC
Operating humidity: ≤95%（+25ºC ）
Operating temperature: 0ºC~+65 ºC
Charge mode: Type-C interface, charging output: 5V 0.5A~3A
Battery capacity: 1250 mAh rechargeable lithium-ion battery
Working hours: 8 hours/balanced mode
Identification: IP67、SRRC
Application area: Livestock breeding，Logistics, Supply chain, Clothing, Warehousing, Hotel, Inspection
