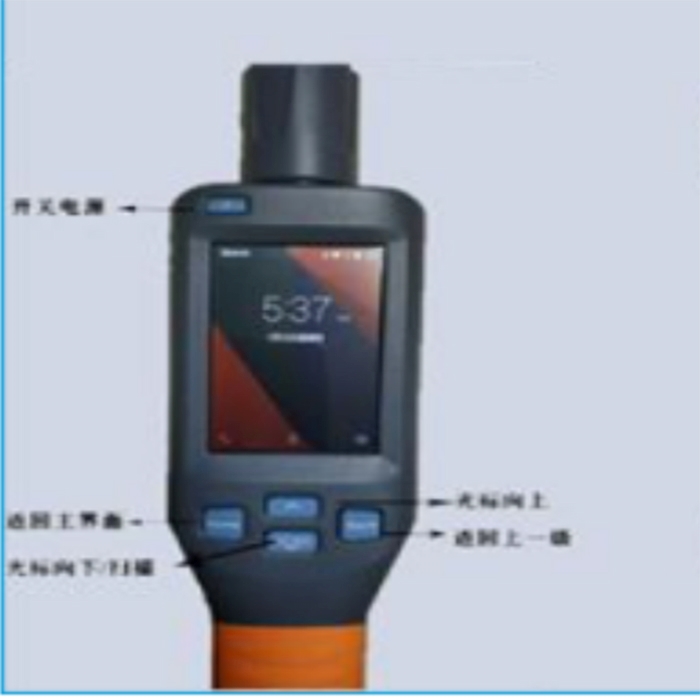

DEJ-A02-A Stick Reader
- ANIMAL HOME
- Hebei province, China
Code: AH 5.3.1
Operating frequency: 134.2KHz
Label format: FDX-B, FDX-A, HDX. EMID
Sensing distance:
FDX-B: 30mmanimal ear tag > 20cm
FDX-A: 2.12*12 glass tube chip > 5cm
HDX: 30mm animal ear tag > 15cm
Standard: IS011784/85
Reading time: less than 100ms
Signal indication: 480*320 high brightness LCD, buzzer
Power supply: 3.7V lithium battery
Power Consumption: 0.4W
Storage capacity: 20000 items
Battery life: more than 10,000 readings on full charge
Battery capacity: 3000mA
Charging interface: USB2.0

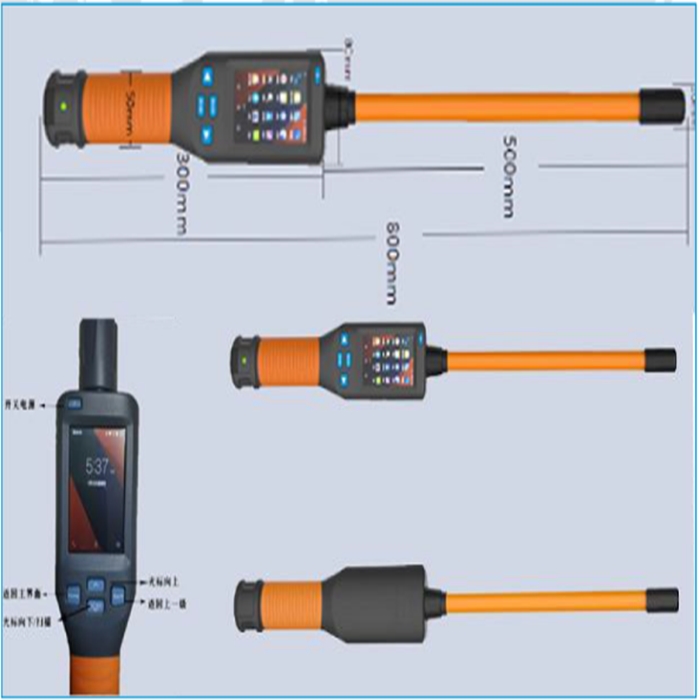

Appearance Specifications: Length 80cm Width 8cm Height4cm
Weight: 600g
Details：
Stick android version of the handheld is a new, the industry's only Android system of animal tag reader, solves the customer with a stand-alone version of the handheld machine with a cell phone connected to Bluetooth to do the system integration. Support card reading, GPS, mobile networking, Bluetooth, Wi-Fi connection and other operations.
This card reader by the card reader board, display board, battery board plus shell antenna composition, the card reader board is mainly for the animal industry within the low-frequency ear tag to read the card operation.
The core board and the card reader board use the serial port for communication.
Stable, reliable, easy to develop, support android system users can customize APP according to the project requirements, design their own products, to be suitable for every user.
New appearance, excellent and stable performance.
Add more functions under the android system, support 2G/3G/4G mobile Unicom, telecom and other networks.
