DEJ-A18 LF Stick Reader

This handheld stick reader employs RFID wireless identification technology and complies with
ISO11784/11785. It supports FDX-B and HDX low-frequency RFID tag formats. The product is
equipped with a high-brightness colour LCD display and features built-in storage capable of
recording up to 100,000 tag entries. Users can transfer stored tag data to computers, mobile phones,
and other terminal devices via three available interfaces: USB Type-C cable, Bluetooth, and 2.4G

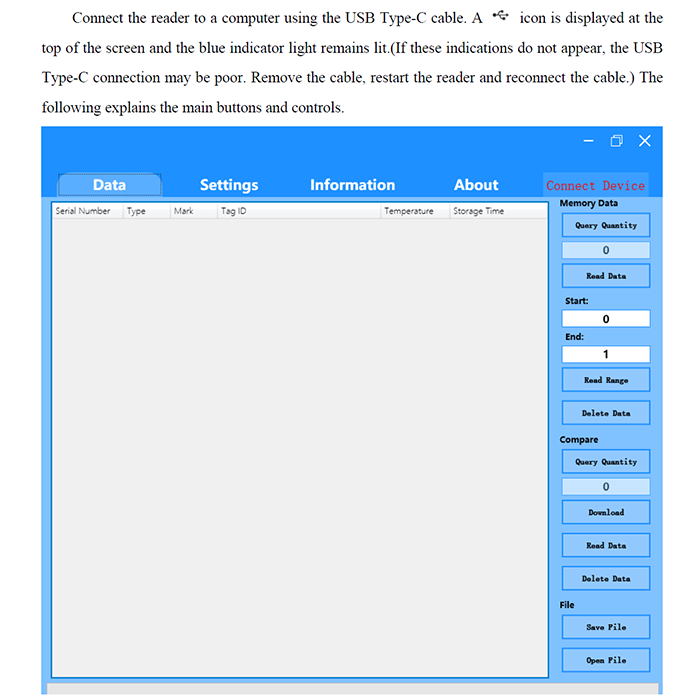

wireless transmission, enabling efficient data management. The accompanying PC software allows
for online adjustment of device functions and efficient processing of stored data. The reader’s unique
compare and mark functions greatly enhance operational efficiency, while multiple human–machine
interaction modes improve user experience.
The device offers stable performance, powerful functions, and simple operation, making it
suitable for pet urban management, traceability management, weighing and grouping systems, as
well as other livestock management applications.

Details

Technical Specifications

Operating Frequency

134.2KHz

Tag Protocols

FDX-B, HDX

Reading Distance

FDX-B

2.12*12mm Microchip: 12cm(±3cm)

Ø30mm Ear tag: 30cm(±5cm)

HDX

Ø30mm Ear tag: 35cm(±5cm)

Protocol

Protocol Standard

ISO11784/85

Signal Indicators

2.4-inch colour LCD, indicator light, buzzer, vibration

Power Supply

7.4V 2600mAh Li-ion Battery

Power Consumption

Tag Reading: approx. 3.7 W, Standby: approx. 0.6 W

Storage Capacity

100,000 tag memory

Battery Life

8 hours continuous operation (fully charged)

Communication

Interfaces

USB Type-C (2.0), Bluetooth 4.0 (BLE), 2.4G wireless

Device Dimensions

69 cm× 6 cm × 5 cm

Weight

500 g

Supported Languages

Chinese, English, Russian, French, German, Japanese, Mongolian,

Dutch, Danish, Traditional Chinese, Spanish, Portuguese, Kazakh,

Italian, New Zealand, Korean

Protection Rating

IP65

Operating Temperature

-10°C to 50°C
