Livestock Equipment

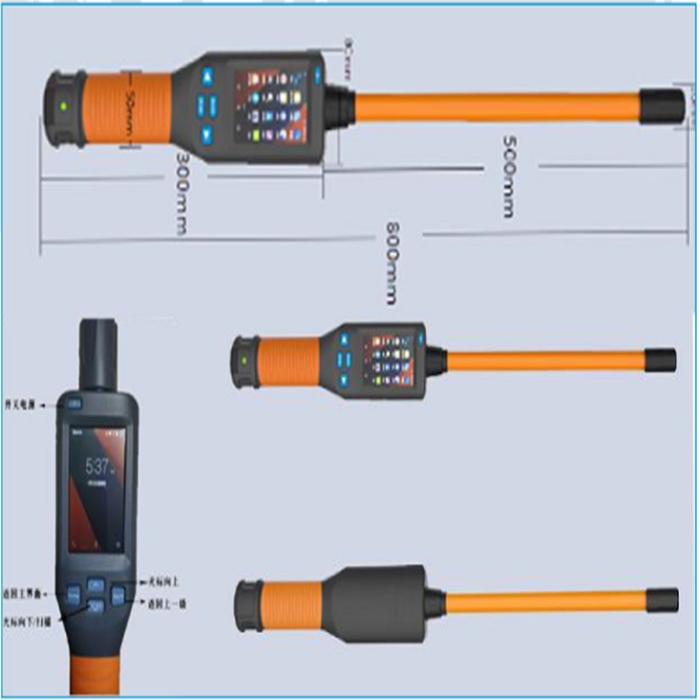

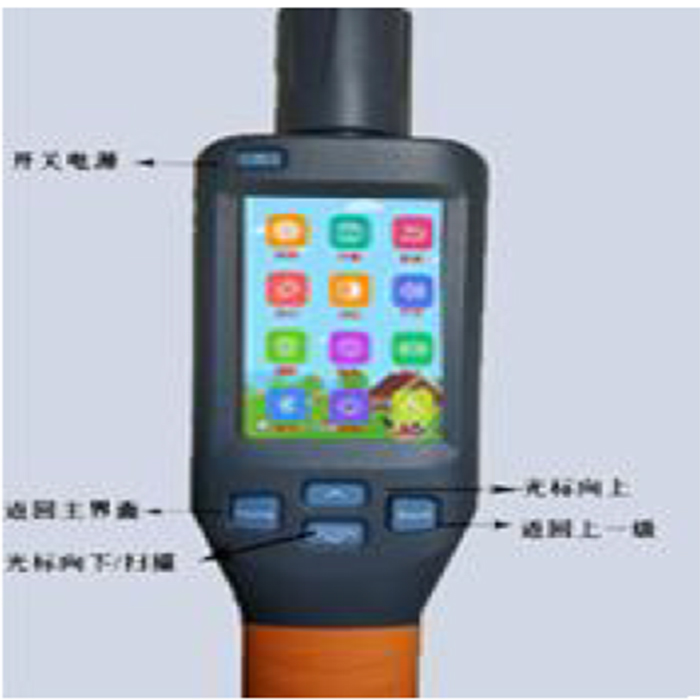

This handheld stick reader employs RFID wireless identification technology and complies with
ISO11784/11785. It supports FDX-B and HDX low-frequency RFID tag formats. The product is
equipped with a high-brightness colour LCD display and features built-in storage capable of
recording up to 100,000 tag entries. Users can transfer stored tag data to computers, mobile phones,
and other terminal devices via three available interfaces: USB Type-C cable, Bluetooth, and 2.4G
wireless transmission, enabling efficient data management. The accompanying PC software allows
for online adjustment of device functions and efficient processing of stored data. The reader’s unique
compare and mark functions greatly enhance operational efficiency, while multiple human–machine
interaction modes improve user experience.
The device offers stable performance, powerful functions, and simple operation, making it
suitable for pet urban management, traceability management, weighing and grouping systems, as
well as other livestock management applications.

Code: AH 5.1.3
Sample：This product does not support sample.
Product Size: 240×80×10mm
Color: Red
Packing:
Single GW：0.3kg/piece
Total:50pairs/carton
Outer package size:38×28×23cm
Gross Weight：16.6kg/carton

Code: AH 5.1.2
Sample：This product does not support sample.
Product Size: 240×80×10mm
Color: Red
Packing:
Single GW：0.3kg/piece
Total:50pairs/carton
Outer package size:38×28×23cm
Gross Weight：16.6kg/carton

Code: AH 5.1.1
Sample：This product does not support sample.
Packing:
Single GW：0.3kg/piece
Product Size: 250×75×10mm
Color: Yellow
Total:50pairs/carton
Outer package size:38×28×23cm
Gross Weight：17.8kg/carton

Code: AH 5.2
Sample：Support sample (Free sample, Postage payable)
Product Size: 143×∮15mm
Packaging: Paper box
Total:20pcs/box

Code: AH 5.3.3
UHF Wearable RFID Reader
Wrist strap design for greater comfort
Contactless connection Bluetooth matching
Comes with APP client application software
Supports fast read and write, easy operation
Fast communication speed and strong anti-interference ability
Large capacity batteries last longer

Code: AH 5.3.2
Operating Frequency：134.2KH2
Label formats：FDX-B, FDX-A, HDX, EMID(SO11784/85)
Sensing distance：
FDX-B: 30mm animal ear tag>20cm
FDX-A: 2.12*12 glass tube chip>5cm
HDX: 30mm animal ear tag >15cm
Standard：ISO11784/85
Reading time：Less than 100ms
Signal indication：480*320 high brightness LCD, buzzer

Power supply: 3.7V lithium battery
Power Consumption: 0.4W
Storage capacity: 20000 items
Battery life: more than 20,000 readings on full charge
Battery capacity: 3000Ma
Communication interface: USB2.0, Bluetooth 2.0
Appearance Specifications: Length 80cm Width 8cm Height4cm
Weight: 500g

Code: AH 5.3.1
Operating frequency: 134.2KHz
Label format: FDX-B, FDX-A, HDX. EMID
Sensing distance:
FDX-B: 30mmanimal ear tag > 20cm
FDX-A: 2.12*12 glass tube chip > 5cm
HDX: 30mm animal ear tag > 15cm
Standard: IS011784/85
Reading time: less than 100ms
Signal indication: 480*320 high brightness LCD, buzzer

Power supply: 3.7V lithium battery
Power Consumption: 0.4W
Storage capacity: 20000 items
Battery life: more than 10,000 readings on full charge
Battery capacity: 3000mA
Charging interface: USB2.0
Appearance Specifications: Length 80cm Width 8cm Height4cm
Weight: 600g

C72X is an Android rugged mobile computer. It features powerful processor, 8000mAh battery and superb UHF RFID capability with the latest lamping Gen2X technology.
It can be equipped with lamping e710 circularly polarized antenna.
It can read tags in bulk from long distances and enables it to be deployed in asset management, retail, warehousing, fleet management etc.
