Stick Reader

This handheld stick reader employs RFID wireless identification technology and complies with
ISO11784/11785. It supports FDX-B and HDX low-frequency RFID tag formats. The product is
equipped with a high-brightness colour LCD display and features built-in storage capable of
recording up to 100,000 tag entries. Users can transfer stored tag data to computers, mobile phones,
and other terminal devices via three available interfaces: USB Type-C cable, Bluetooth, and 2.4G
wireless transmission, enabling efficient data management. The accompanying PC software allows
for online adjustment of device functions and efficient processing of stored data. The reader’s unique
compare and mark functions greatly enhance operational efficiency, while multiple human–machine
interaction modes improve user experience.
The device offers stable performance, powerful functions, and simple operation, making it
suitable for pet urban management, traceability management, weighing and grouping systems, as
well as other livestock management applications.

Code: AH 5.3.2
Operating Frequency：134.2KH2
Label formats：FDX-B, FDX-A, HDX, EMID(SO11784/85)
Sensing distance：
FDX-B: 30mm animal ear tag>20cm
FDX-A: 2.12*12 glass tube chip>5cm
HDX: 30mm animal ear tag >15cm
Standard：ISO11784/85
Reading time：Less than 100ms

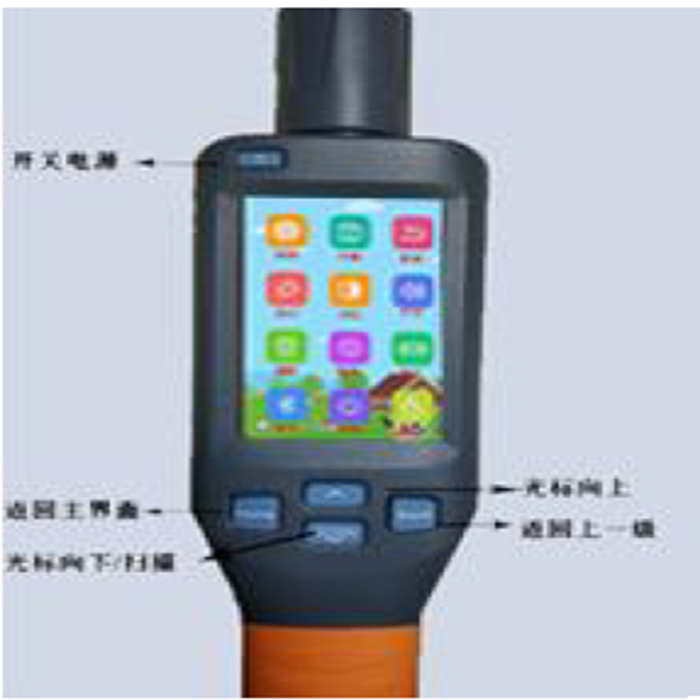

Signal indication：480*320 high brightness LCD, buzzer

Power supply: 3.7V lithium battery
Power Consumption: 0.4W
Storage capacity: 20000 items
Battery life: more than 20,000 readings on full charge
Battery capacity: 3000Ma
Communication interface: USB2.0, Bluetooth 2.0

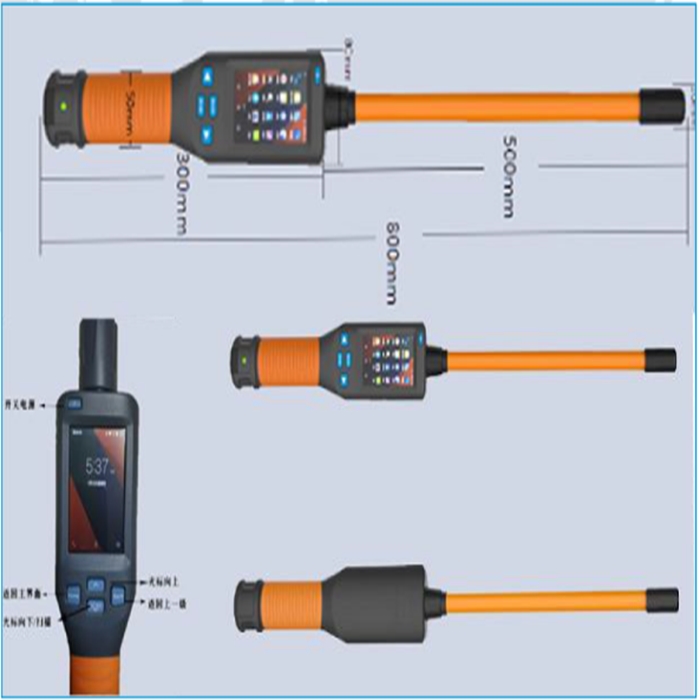

Appearance Specifications: Length 80cm Width 8cm Height4cm
Weight: 500g

Code: AH 5.3.1
Operating frequency: 134.2KHz
Label format: FDX-B, FDX-A, HDX. EMID
Sensing distance:
FDX-B: 30mmanimal ear tag > 20cm
FDX-A: 2.12*12 glass tube chip > 5cm
HDX: 30mm animal ear tag > 15cm
Standard: IS011784/85
Reading time: less than 100ms
Signal indication: 480*320 high brightness LCD, buzzer

Power supply: 3.7V lithium battery
Power Consumption: 0.4W
Storage capacity: 20000 items
Battery life: more than 10,000 readings on full charge
Battery capacity: 3000mA
Charging interface: USB2.0
Appearance Specifications: Length 80cm Width 8cm Height4cm
Weight: 600g
